Anonymous Maps

mwp provides a pseudo-map proxy that just gives you a black map (or user specified tile). This may be useful for a number of use-cases:

• privacy
• general obstinacy
• clarity of display

Building

This proxy is not build by default, it is necessary to build, install and configure the proxy manually.

cd mwptools/qproxy
make bproxy
# copy bproxy somewhere on the PATH
cp bproxy ~/.local/bin/
# or
sudo cp broxy /usr/local/bin
# or
sudo cp broxy /usr/bin

Configuration

That was the easy bit! Now it is necessary to tell mwp where to find the proxy. This involves a setting and a configuration file.

First of all, ensure that the map-sources setting is enabled:

$ gsettings get org.stronnag.mwp map-sources
'sources.json'
# here this set to a file sources.json (in the configuraion directory ~/.config/mwp/ / $LOCALAPPDATA/mwp)

if this is not set, then set it:

$ gsettings set org.stronnag.mwp map-sources 'sources.json'

Now we need to edit the configuration file sources.json, there is a sample file in mwptools/samples/sources.json. you file needs a stanza like:

{
 "id": "Black",
 "name": "Black Tiles",
 "license": "(c) jh ",
 "license_uri": "http://daria.co.uk/",
 "min_zoom": 0,
 "max_zoom": 20,
 "tile_size": 256,
 "projection": "MERCATOR",
 "spawn" : "bproxy",
}

So a minimal sources.json looks like:

{
   "sources" : [
      {
         "id": "Black",
         "name": "Black Tiles",
         "license": "(c) jh ",
         "license_uri": "http://daria.co.uk/",
         "min_zoom": 0,
         "max_zoom": 20,
         "tile_size": 256,
         "projection": "MERCATOR",
         "spawn" : "bproxy",
       }
   ]
}

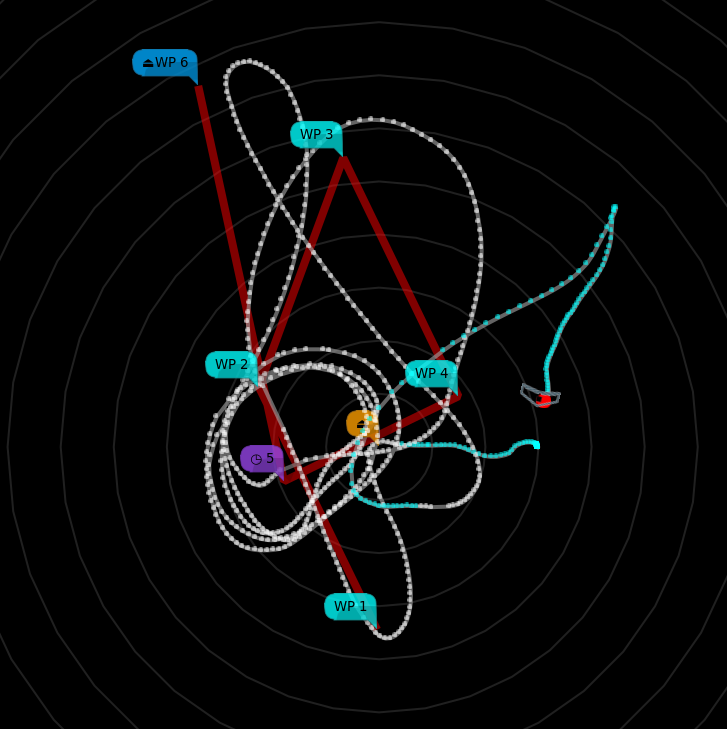

On starting mwp you should see a new map option "Black Tiles".

Custom Tile

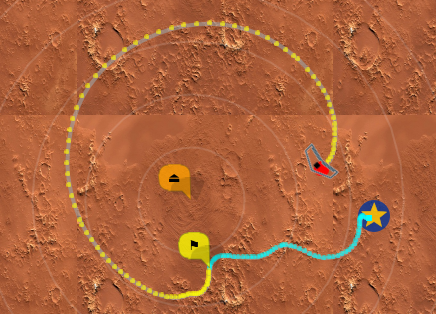

It's also possible to have a custom tile (which does not have to be black). The tile must be:

• 256x256 pixels
• PNG

The full path is provided in the environment variable MWP_BLACK_TILE, e.g.

# put this in e.g. ~/.bashrc to make it permanent
export MWP_BLACK_TILE=~/.config/mwp/mytile.png

The environment variable may instead be added to cmdopts.

For example:
