Ground Control Station Features#

GCS Usage#

Basic functionality#

Real time tracking of vehicle via telemetry
Audio status reports
OSD style WP information
Radar view of other aircraft
In picture video feed display.

Vehicle Track / Waypoints Colour Schemes#

Flight Mode colours#

Mode	Colour
Piloted	Cyan `#00ffff`
Alt Hold	Blue `#03c0fa`
Cruise	Purple `#bf88f7`
FW Land	Pink `#ff92f0`
PosHold	Green `#4cfe00`
RTH	Yellow `#fafa00`
WP	White `#ffffff`
Undefined	Orange `#ff8000`

Waypoint Colours#

Type	Colour
WAYPOINT	Cyan `#00ffff`
POSHOLD_TIME	Purple `#9846eb`
POSHOLD_UNLIM (MW)	Green `#4cfe00`
RTH	Blue `#00aaff`
LAND	Pink `#ff9af0`
JUMP	Magenta `#ed51d7`
SET_POI / SET_HEAD	Yellow `#ff9af0`
UNDEFINED	Grey `#e0e0e0`
(Home)	Brown `#8c4343`

OSD information#

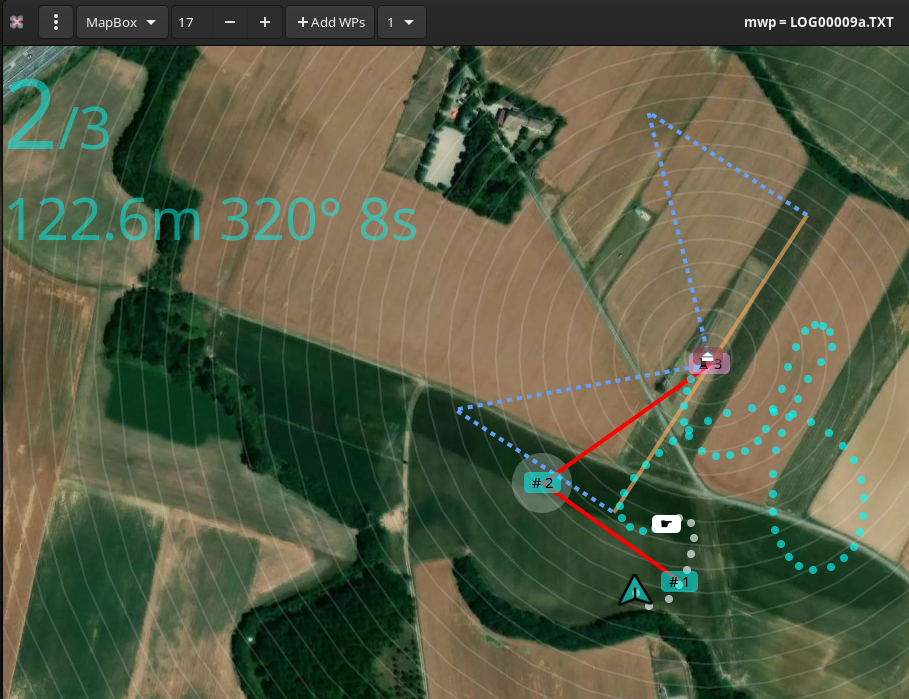

When flying waypoints, if the mission is also loaded into mwp, mwp can display some limited "OSD" information.

mwp-osd

Various settings (colour, items displayed etc.) are defined by settings.

GCS Location Icon#

A icon representing the GCS location can be activated from the View/GCS Location" menu option.

By default, it will display a tasteful yellow / blue icon which one may drag around. It has a few other purposes beyond showing some user specified location (but see below).

If you don't like the icon, you can override it by creating your own icon.

If gpsd is detected (on localhost), then the position will be driven by gpsd, as long as it has a 3D fix.
The one usage is when inav-radar is active; if the GCS icon is enabled (either by manual location or driven by gpsd), then rather than being a passive 'GCS' node, mwp will masquerade as an 'INAV' node and advertise the GCS (icon) location to other nodes. This implies that you have sufficient LoRa slots to support this node usage.
Another use is for INAV Follow Me where the followed location can be driven by gpsd.
