Mission Editor#

Overview#

The following chapters provide specific information for advanced INAV capability topics:

Please note that some of the images in this chapter are from the legacy version of mwp.

Map Features#

Missions may be added on the map by enabling mission add mode:

ui_edit

This will:

  • Display a notional home location (brown icon)
  • Allow new WPs to be created by clicking on the map

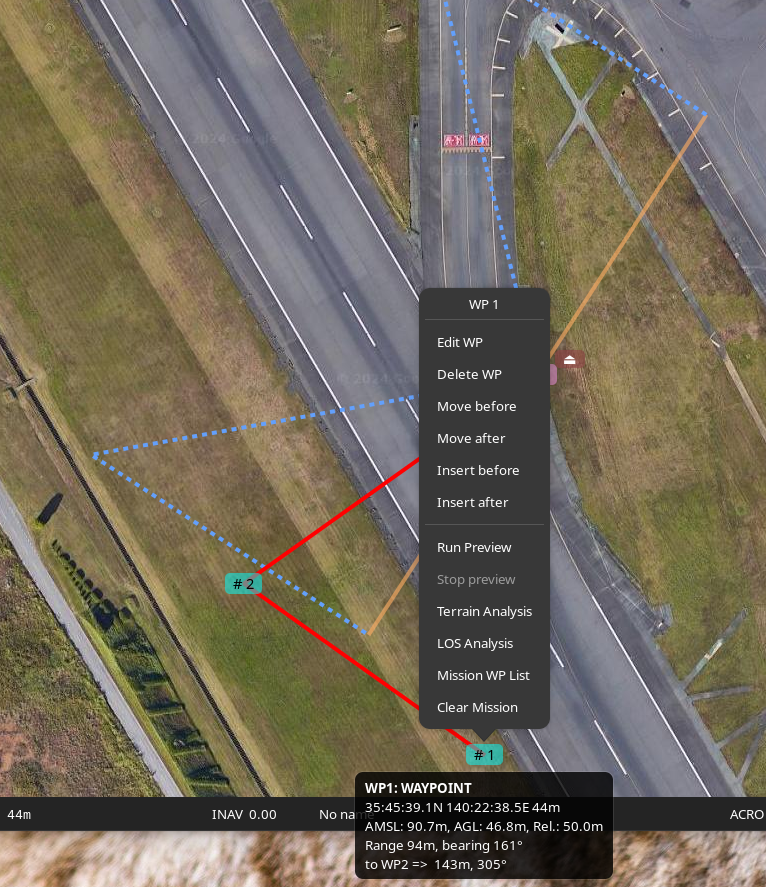

WPs have a context popup menu via right click on a WP icon

ui_edit

Almost all functions are available here, however some advanced functions, acting on multiple WP, etc. requires the tabular mission editor.

Edit Waypoint#

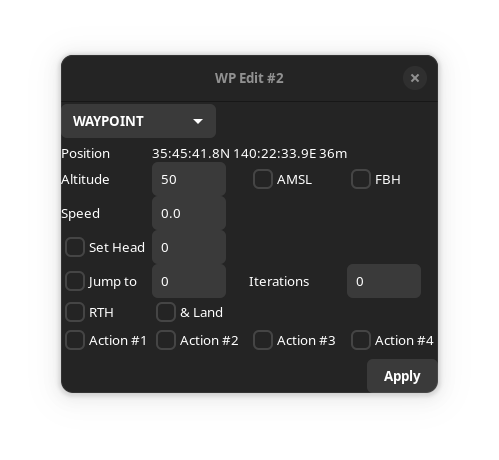

The Edit Waypoint option opens an edit form for the current waypoint. The items displayed depend on the type of waypoint.

ui_edit

In this image, note:

  • The Way Point type WAYPOINT.
  • The WP location (and absolute elevation AMSL)
  • The WP Altitude, either absolute (here the ASML box is checked) or relative. Whether this is a Fly By Home (FBH) waypoint
  • The speed (m/s)
  • Additional attributes which may be enabled or disabled:
    • Set Heading (-1 to clear a previous set head)
    • JUMP parameters (-1 Iterations == infinite)
    • Return to Home (and land).
  • INAV 6.0, user defined actions 1-4. Invoked via INAV logic conditions.
  • INAV 7.1.0, edit FW Approach (Auto-land) parameters for LAND WP types.

Multiple attributes may be set.

If the AMSL button is toggled, and a valid planned home location is set, then the altitude will be adjusted. For the above example, if the AMSL box is cleared, the dialogue shows:

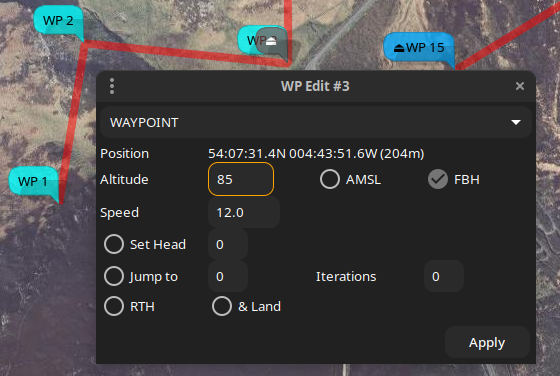

ui_edit

Note that the Altitude box has an orange border to show that the altitude has been automatically updated.

If there is no planned home location, and the AMSL box is toggled, then the Altitude box assumes a red border to indicate to the user that manual intervention is required.

ui_edit

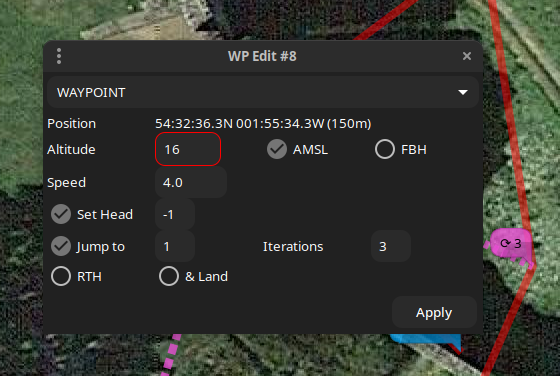

In the above image, a relative altitude of 16m has been toggled to absolute; there is no home position, so the altitude entry has a red border, as this is now below the absolute altitude of the terrain.

Note also that this example has multiple option set (SET HEAD and JUMP).

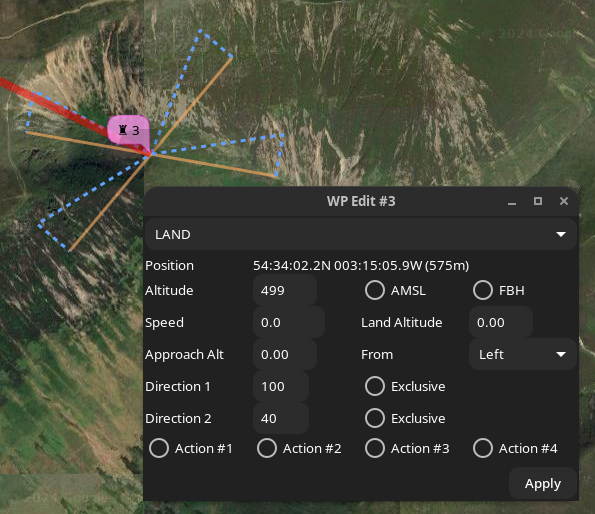

For a LAND WP, the FW Approach parameters are available.

ui_edit

Mission WP List#

The Mission WP List may be invoked from the WP context menu.

It provides the following functions:

  • Create, delete, modify, reorder waypoints.
  • Context sensitive column titles for parameters
  • Bulk updates (altitudes, speeds, position offsets)
  • Automated path (polygon around a shape) generation.
  • Terrain Analysis and Line of Sight Analysis.

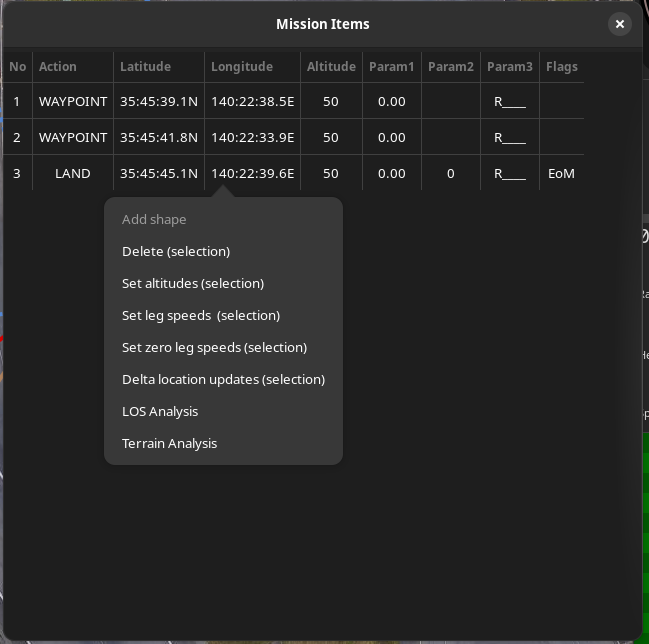

There is a right mouse context menu, the availability of items depending on whether zero, one or multiple items are selected.

tote_menu

The param3 value is presented as:

  • R : Relative Altitude
  • A : Absolute (AMSL) Altitude
  • [1234] : User action set

The flags values are presented as:

Common Operations#

Many of the operations described below are shown in the videos, which probably provide a clearer explanation that any textual description could. Note also that many of these (images and videos) are legacy, but the concepts are still valid.

Add Shape#

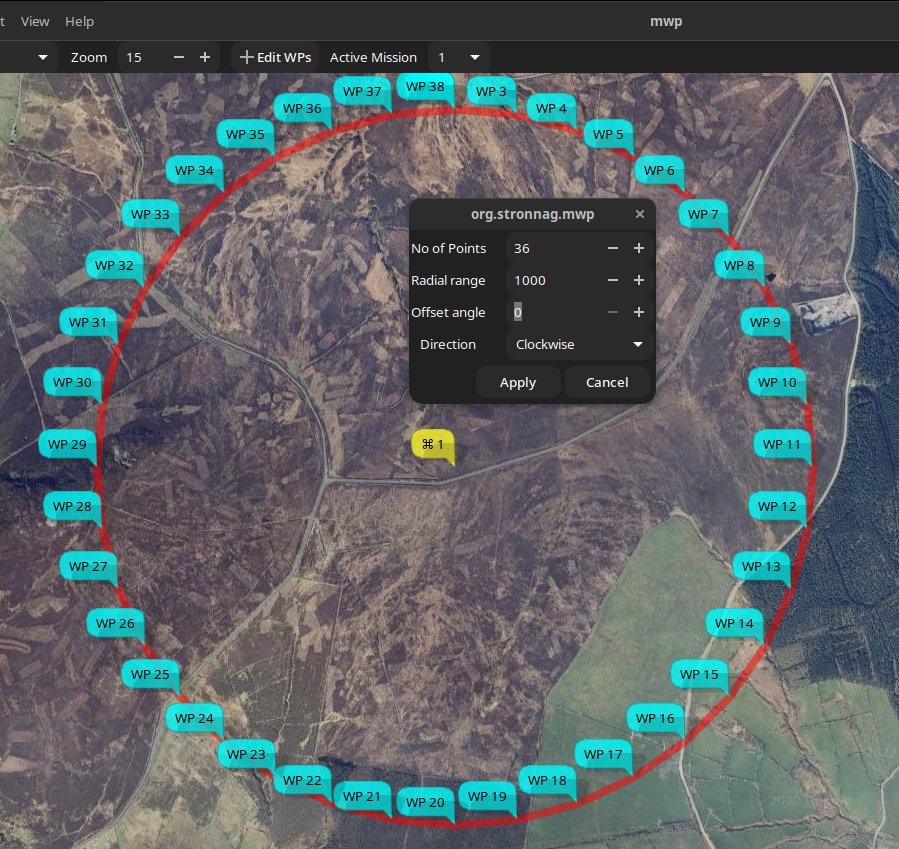

If a SET POI point is added to the mission, (there may also be other extant way-points), this option will display a dialogue to enter the number of points in a shape, the radial distance (from the SET POI to each point), an offset angle and the direction of rotation. i.e this defines a polygon around the POI.

type

  • The offset is relative to North. If you wanted the lines to be horizontal / vertical, specify an offset of 45° for a square.
  • Shape points are appended to any extant mission points, and the shape tool may be invoked multiple times, for example to create 'concentric' circles.
  • Once the shape is generated, the SET_POI point may be deleted, unless you really want SET_POI functionality.

Location Updates#

Bulk location updates may be applied to selected waypoints.

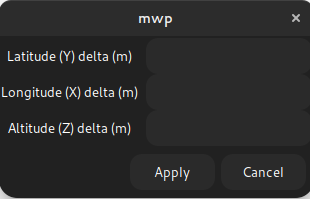

mission_upd

If an item if left black (or 0), then no adjustment is applied to that axis. Offsets are in metres, regardless of the user's preference distance unit.

Speed and Altitude updates#

Bulk speed and altitude updates may be applied to selected waypoints. The altitude update allows either relative (to home) to absolute (ASL) altitudes.

Preview Mission#

"Flys" an aircraft icon around the mission; this may be useful for predicting the behaviour of multiple embedded JUMPs.

Clear Mission#

The Clear Mission option clears the mission. There is no confirmation, so be sure you really want to do this.

Uncommitted Changes#

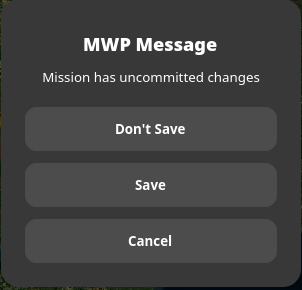

If mwp detects uncommitted changes when opening a new mission / downloading from the FC / cleanly exiting the application, then the user is presented with the following dialogue.

mconfirm

  • Don't Save : The mission is not saved, the original action completes.
  • Save : The user is presented with a Save Dialog to save the mission.
  • Cancel : The original action is cancelled.

Advanced WP types / Video Tutorials#

JUMP, POSHOLD TIMED, LAND#

Video example setting up JUMP, POSHOLD TIMED and LAND waypoints.

SET_POI, SET_HEAD as mission elements#

Video example SET_POI and SET_HEAD (real mission usage).

Mission Preview#

Video example of preview for a complex (multiple jumps, timed POSHOLD) mission (preview from the first video).
