Mwp Survey Planner#
mwp survey / area planner is a tool to plan "survey" or "search" missions. It generates MWXML mission files compatible with mwp and the INAV Configurator. A simple "parallel lines across a polygon" survey pattern is supported, as well as a "creeping square" pattern and a spiral pattern.
Usage#

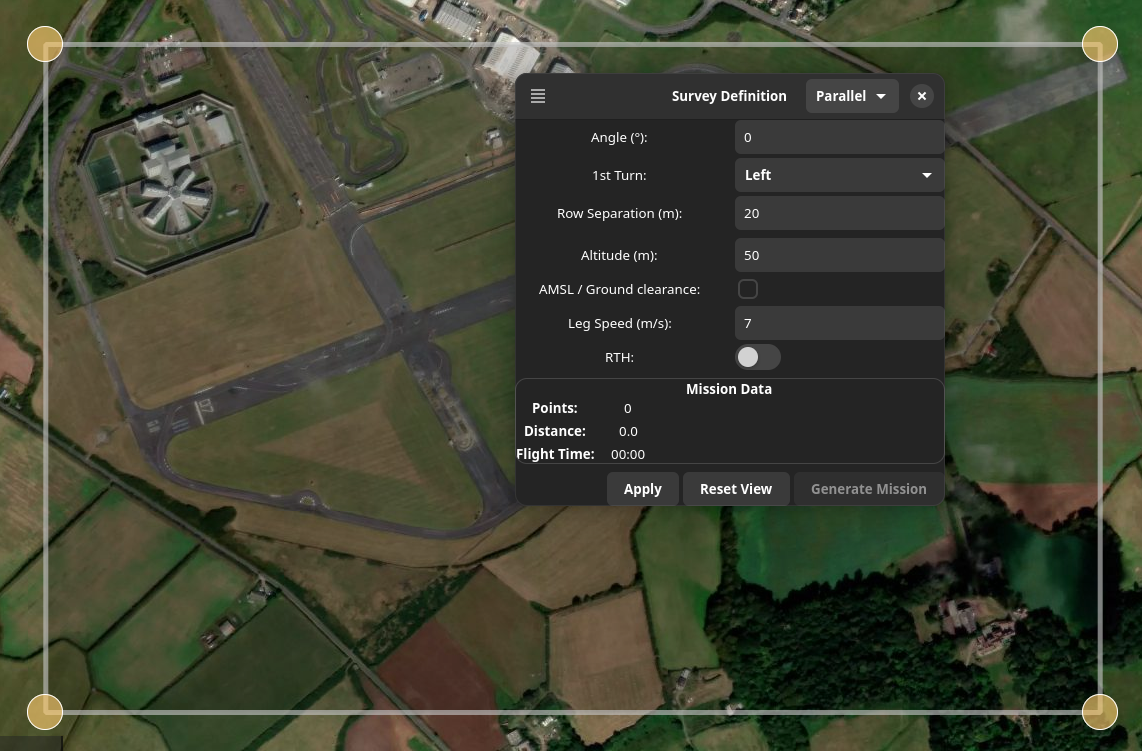

The area planner is invoked from the "Edit" menu. It loads a dialogue window and presents a basic search area outline.
The drop-down in the top right offers options of:
- Parallel: Default parallel line pattern
- Square: Expanding Square.
- Spiral: Spiral pattern.
Mission Parameters#
The dialog provides options for mission creation that are common to each survey pattern:
- Altitude: in metres (mission parameter), relative or absolute, dependent on:
- AMSL / Ground Clearance: This controls how the altitude value is used:
- If not set, the same altitude value is set for each way-point and is relative to the arming location.
- If set, the altitude value is added to the AMSL (Absolute/Above Mean Sea Level) elevation for each way point, and the way-point altitude is set as absolute.
- RTH (mission parameter). Whether to set RTH on the final generated WP.
- Leg Speed (mission parameter).
Legacy Images
There are some older images in the samples below without the AMSL button.
Control Buttons#
The tool is controlled by the three buttons at the bottom of the window.
-
Apply: The settings are applied and the pattern is drawn. The button will be disabled if the size of the survey outline and the row separation values would result in an impractically large number of turning points. In order to resolve this it will be necessary to either reduce the size of the survey area or increase the row separation.
-
Reset View: The survey view is reset. The survey outline is reset to a rectangle covering 80% of the map. This is used to reset the area after panning or zooming out of the initial view.
-
Generate Mission: Generates a mission from the survey plan. The survey tool is closed. The mission may be edited / save / uploaded to the FC as normal. If the number of points would exceed the maximum number of mission points, this button is disabled. In order to resolve this it will be necessary to either reduce the size of the survey area or increase the row separation.
"Parallel Lines" Editing outline points#

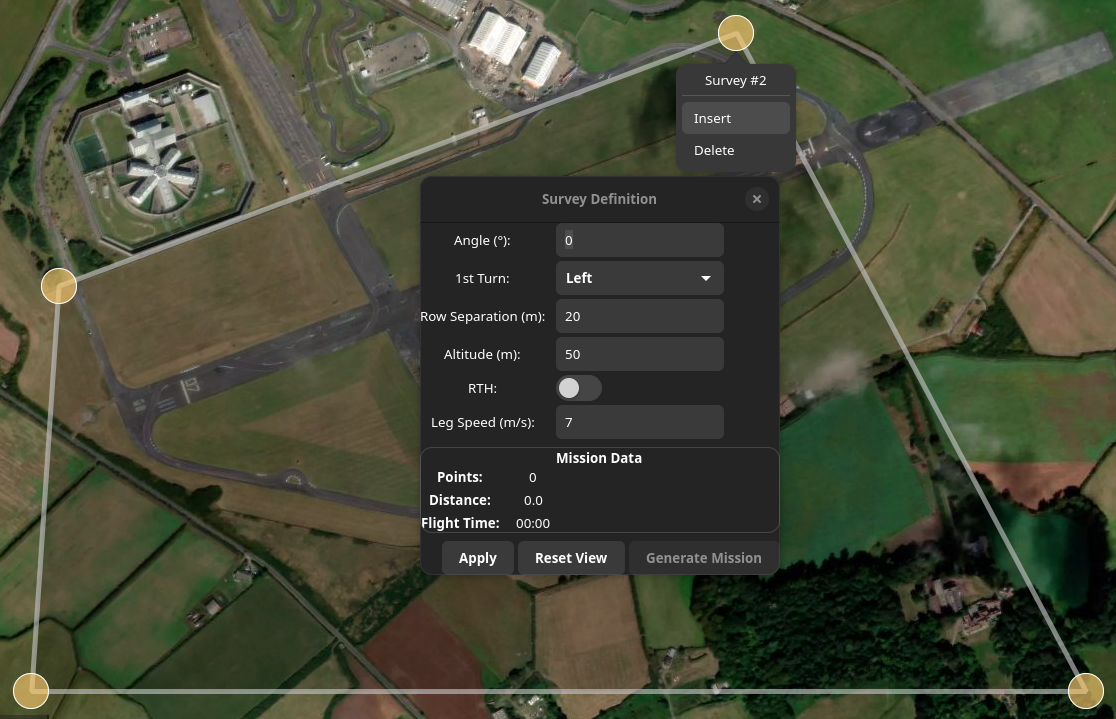

Points may be inserted / deleted from the survey outline from a right mouse / long press on a survey points. Insert adds a point in a clock-wise direction; delete removes the clicked point.
Points may be moved by dragging.
Any plotted outline mission will be recalculated as points are manipulated.
Parameters#
- Angle: Defines the direction of the first mission leg.
- 1st Turn: Left or Right
- Row Separation: Distance between the rows in metres
Once an initial solution has been plotted, changing any of the first three parameters will result in the solution being recalculated.
After a solution has been calculated, the "Mission Data" summary is updated.

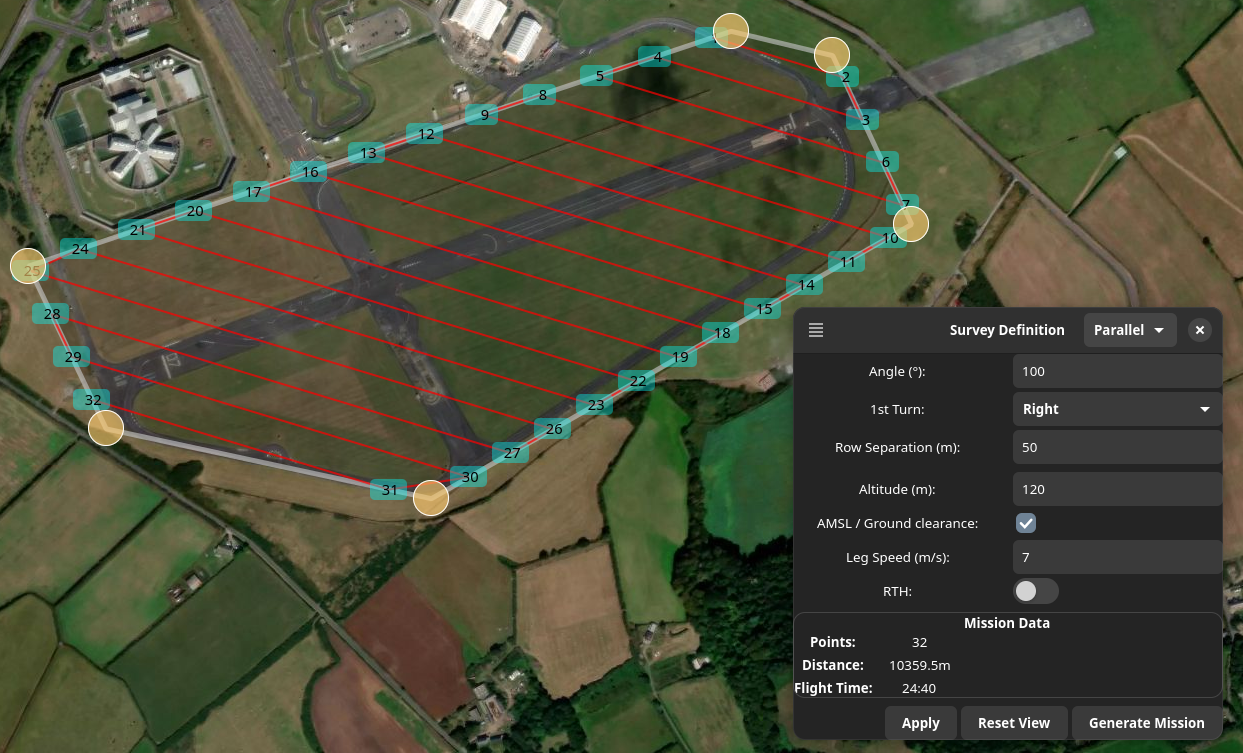

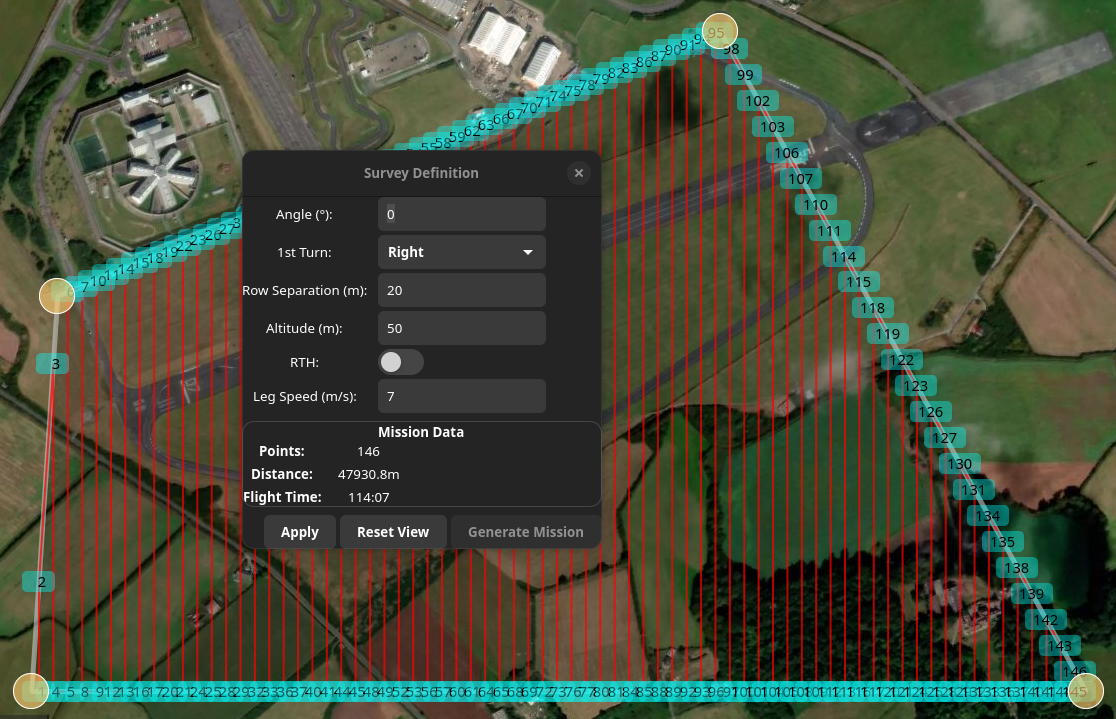

Example of too many points being generated due to over-large area / narrow row separation:
Example of fewer points being generated with adjusted area and row separation:
Note also how the angle and turn parameters affect the staring point.

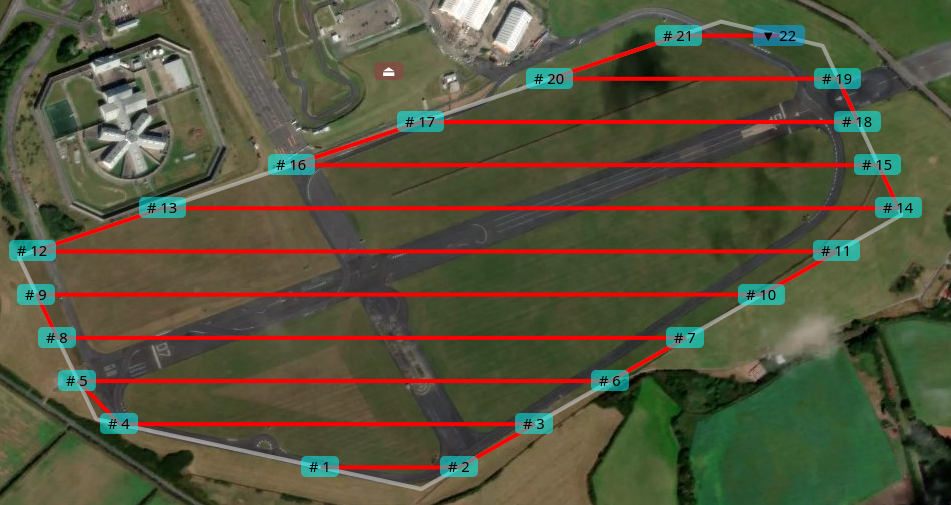

Example of generated mission with KML backdrop showing original survey area:
"Square" pattern generator#
The "Square" generator provides a single draggable point with options of start angle, first leg distance and the number of iterations.

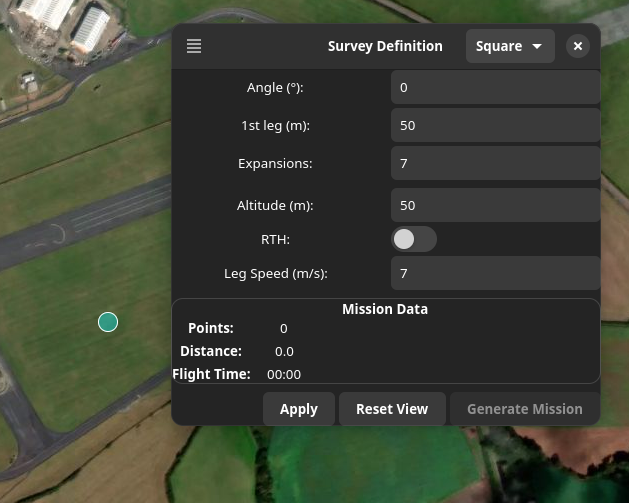

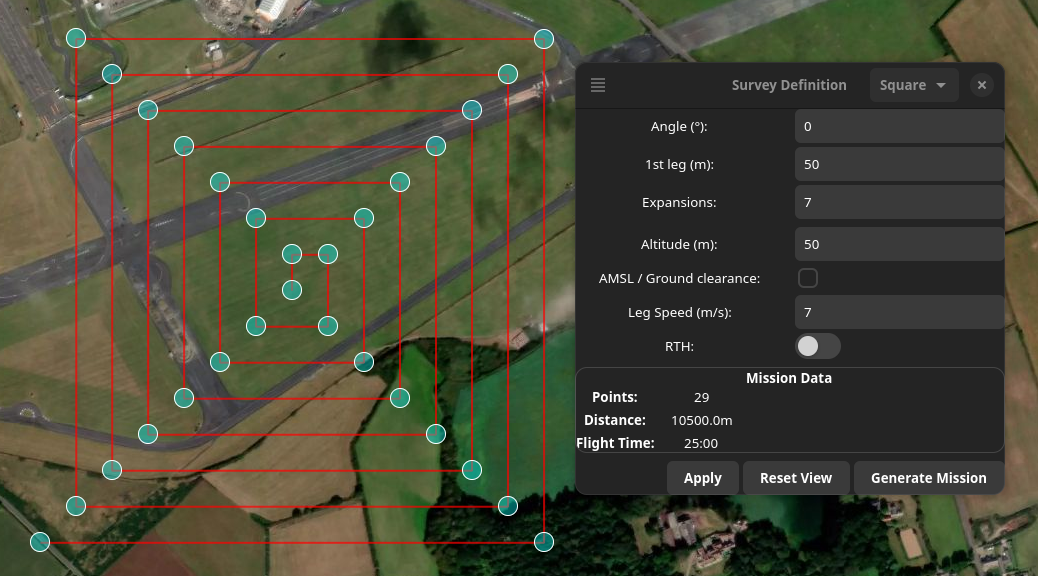

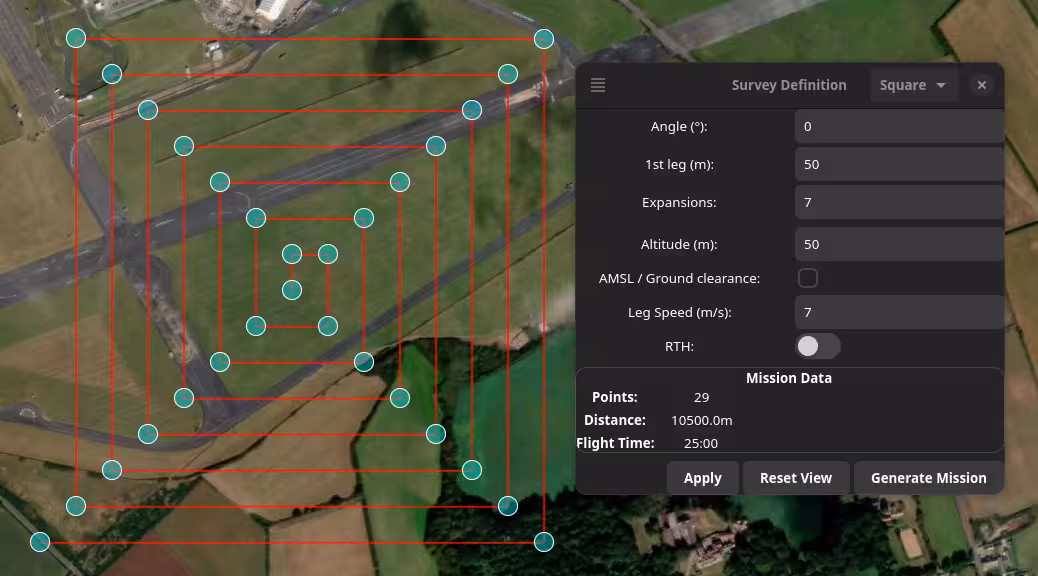

The default parameters result in the following survey pattern.

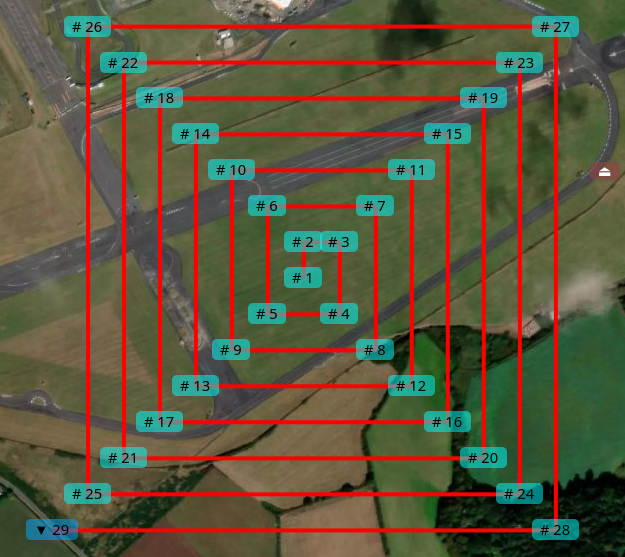

And a generated mission from these settings looks might look like:
"Spiral" pattern generator#
The "Spiral" generator provides a single draggable point with options of first leg distance and the number of iterations. In this case, the first leg distance is the range to the 0° radial, which is repeated for each iteration. The number of points per iteration varies with the "radius" in order to provide practical leg lengths within INAV's 120 mission point constraint.

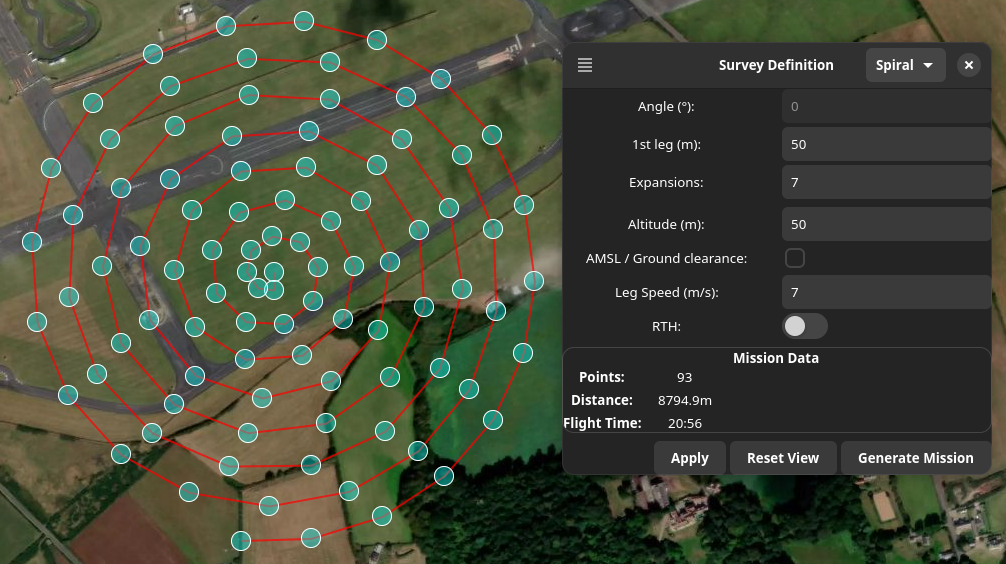

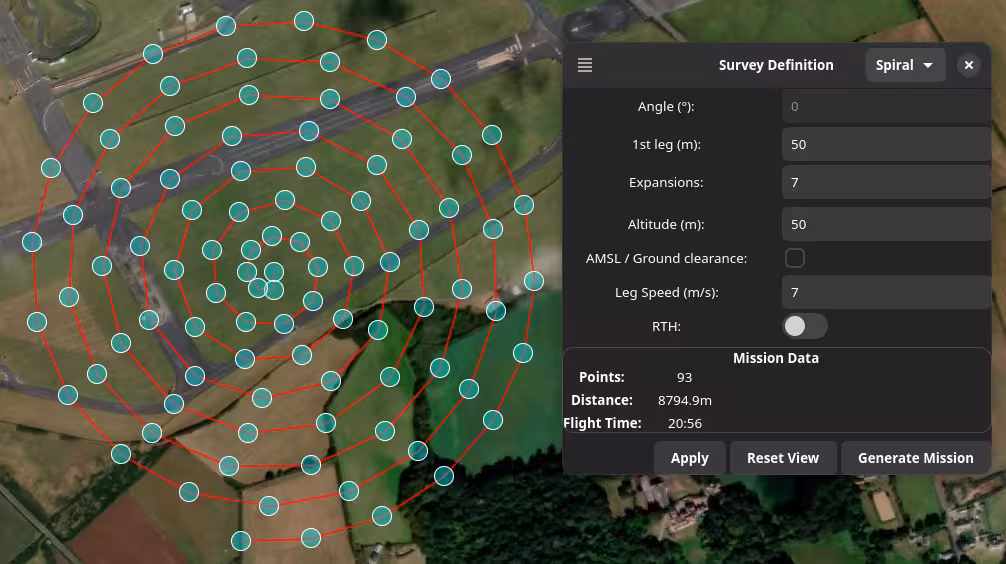

The default parameters result in the following survey pattern.

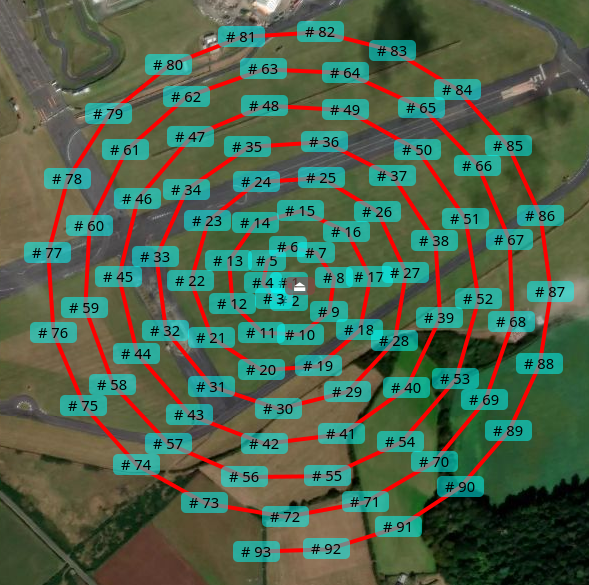

And a generated mission from these settings looks might look like:
File Menu#

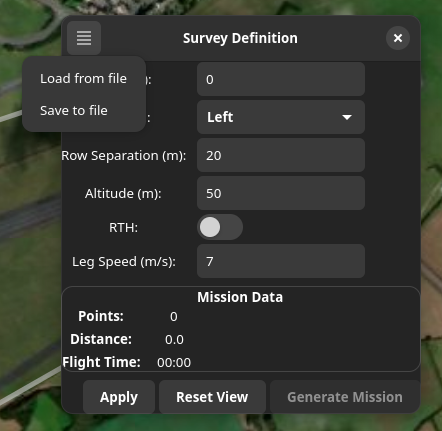

The area planner dialog has a drop down menu to load and save area definitions to / from the file system. The files are the same format as for the legacy mwp-area-planner
.
In addition (not shown), it is also possible to save the survey outline as a KML file for future display / analysis.
Obsolete video#
There is an old youtube video covering both the legacy mwp-area-planner
and iforce2d's on line tool.
